- Tee Extrusion Sections Ullrich manufacture a range of tee extrusions. Tee 20mm to 100mm extrusions including split tees and sliding door tees. Download pdf file of Tees extrusions. Note: Red Indicates – MILL RUN ONLY, Non-Stocked Item. MINIMUM ORDER QUANTITY 200kg. Contact your local branch to enquire.
- SlotPro is an aluminium T-slot profile system that is unparalleled in its quality and has an extreme connection system. The SlotPro profile system is easy to process and quick to assemble, requiring only a 5mm Hex key to tighten. It’s flexible and modular construction means it can easily be modified and is reusable at any time.
There are many 10 Series aluminum extrusions to select from, including 1″x1″, 1″x1″QR, 1″x2″, 1″x3″, 2″x2″ and 2″x4″. The slot widths are 0.255″ and are modular to each other. The design’s 0.125″ inside radius makes it easy to slide drop-in T-Nuts. These extrusions are ideal for sound enclosures, machine guarding, display racks, work benches, and panel mount racks.
Note: Red Indicates – MILL RUN ONLY, Non-Stocked Item. MINIMUM ORDER QUANTITY 200kg. Contact your local branch to enquire.
Search - dies, products and topics...You can search for die numbers, product names and topics e.g. cladding
NEW ZEALAND
Download PDFClick on a column heading to sort by that column
| Extrusion | DIE No. | Dimensions | Type | Drawing | W | P | Ix | Iy | Mi |
|---|---|---|---|---|---|---|---|---|---|
| SLIDING DOOR TRACK | UA1341 | 12.00 x 7.00 | Miscellaneous | 0.083 | 36.00 | 129.53 | 181.74 | 3112.70 | |
| PICTURE FRAME | UA2039 | 12.50 x 20.50 | Miscellaneous | 0.163 | 102.00 | 2912.90 | 1035.29 | 39481.90 | |
| PICTURE FRAME | UA2000 | 13.10 x 16.30 | Miscellaneous | 0.144 | 86.00 | 1722.00 | 811.32 | 25333.20 | |
| TRACK TOP FIX | UA1350 | 14.50 x 5.80 | Miscellaneous | 0.082 | 54.00 | 93.57 | 526.81 | 6203.80 | |
| 6MM GLASS JOINTER | UA1356 | 16.00 x 10.50 | Miscellaneous | 0.159 | 82.00 | 1022.15 | 1016.38 | 20385.30 | |
| TRACK SIDE FIX | UA1351 | 17.00 x 12.00 | Miscellaneous | 0.125 | 80.00 | 250.98 | 1674.93 | 19259.10 | |
| 16MM DRAWER PULL | UA1643 | 17.40 x 44.00 | Miscellaneous | 0.546 | 164.00 | 40536.09 | 5446.13 | 459822.20 | |
| GLASS CHANNEL | UA4130 | 18.00 x 17.99 | Miscellaneous | 0.165 | 104.00 | 2111.17 | 3332.14 | 54433.10 | |
| 16MM CUPBOARD PULL | UA1363 | 18.00 x 34.00 | Miscellaneous | 0.314 | 129.00 | 10150.40 | 2873.42 | 130238.20 | |
| DOOR TRACK | UA2154 | 19.00 x 6.00 | Miscellaneous | 0.142 | 47.00 | 118.84 | 1135.07 | 12539.10 | |
| DOOR TEE | UA1345 | 19.00 x 15.80 | Miscellaneous | 0.146 | 65.00 | 547.28 | 1280.11 | 18273.90 | |
| TRACK | UA3703 | 19.10 x 9.30 | Miscellaneous | 0.116 | 80.00 | 425.15 | 2189.25 | 26144.00 | |
| COLONIAL BEAD | UA1952 | 19.20 x 3.80 | Miscellaneous | 0.121 | 57.00 | 34.65 | 1603.11 | 16377.60 | |
| COLONIAL BEAD | UA1951 | 19.20 x 10.00 | Miscellaneous | 0.174 | 83.00 | 545.90 | 1513.97 | 20598.70 | |
| 19MM DRAWER PULL | UA1950 | 19.50 x 44.00 | Miscellaneous | 0.633 | 165.00 | 39347.19 | 7446.95 | 467941.40 | |
| SLIDING DOOR TEE | UA1343 | 20.30 x 13.50 | Miscellaneous | 0.172 | 66.00 | 1098.82 | 993.95 | 20927.70 | |
| 19MM TICKET HOLDER | UA1347 | 21.00 x 3.00 | Miscellaneous | 0.069 | 53.00 | 11.62 | 1161.73 | 11733.50 | |
| PICTURE FRAME | UA1359 | 22.02 x 22.95 | Miscellaneous | 0.281 | 139.00 | 3241.39 | 5756.13 | 89975.20 | |
| 6MM GLASS TRACK BASE | UA1354 | 23.00 x 8.00 | Miscellaneous | 0.178 | 98.00 | 357.55 | 3835.98 | 41935.30 | |
| CUSTOMWOOD INSERT | UA2516 | 23.00 x 12.00 | Miscellaneous | 0.165 | 104.00 | 755.64 | 3174.03 | 39296.70 | |
| 6MM GLASS TRACK TOP | UA1353 | 23.00 x 14.00 | Miscellaneous | 0.232 | 131.00 | 1937.48 | 5492.74 | 74302.20 | |
| AWNING FRAME | UA3006 | 23.00 x 23.00 | Miscellaneous | 0.381 | 126.00 | 7902.33 | 10598.94 | 185012.70 | |
| 7.9MM F - SECTION | UA1663 | 23.80 x 15.00 | Miscellaneous | 0.301 | 100.00 | 1855.41 | 5325.58 | 71809.90 | |
| 22MM TICKET HOLDER | UA2483 | 25.00 x 4.70 | Miscellaneous | 0.110 | 70.00 | 67.76 | 3029.19 | 30969.50 | |
| MIRROR MOUNT BASE | UA6861 | 25.00 x 10.50 | Miscellaneous | 0.218 | 115.00 | 1203.76 | 4767.44 | 59712.00 | |
| DOOR TRACK | UA2229 | 25.00 x 22.88 | Miscellaneous | 0.240 | 95.00 | 5277.14 | 2102.60 | 73797.40 | |
| SLIDING DOOR TEE | UA3769 | 25.40 x 15.90 | Miscellaneous | 0.364 | 80.00 | 2785.75 | 4190.28 | 69760.30 | |
| SHOWERSCREEN FRAME | UA1392 | 25.50 x 25.50 | Miscellaneous | 0.428 | 135.00 | 14069.83 | 11314.67 | 253845.00 | |
| MIRROR MOUNT TOP | UA6862 | 27.03 x 12.30 | Miscellaneous | 0.166 | 82.00 | 470.15 | 5598.60 | 60687.50 | |
| DOOR TRACK | UA2221 | 30.00 x 25.00 | Miscellaneous | 0.378 | 177.00 | 11488.83 | 19451.37 | 309402.00 | |
| HANGING FILE RAIL | UA3266 | 30.00 x 32.00 | Miscellaneous | 0.389 | 187.00 | 9167.11 | 19739.70 | 289068.10 | |
| SHOWERSCREEN FRAME | UA1391 | 30.50 x 10.50 | Miscellaneous | 0.338 | 107.00 | 2042.59 | 10400.85 | 124434.40 | |
| 29MM TICKET HOLDER | UA1348 | 32.00 x 3.00 | Miscellaneous | 0.115 | 76.00 | 18.79 | 4482.45 | 45012.40 | |
| 6MM GLASS SILL | UA1352 | 32.00 x 9.50 | Miscellaneous | 0.182 | 98.00 | 466.88 | 4215.26 | 46821.40 | |
| SLATWALL INSERT | UA2852 | 32.00 x 12.50 | Miscellaneous | 0.223 | 140.00 | 1026.35 | 8295.22 | 93215.70 | |
| DIN RAIL | UA7713 | 35.20 x 13.10 | Miscellaneous | 0.381 | 140.00 | 2522.68 | 17983.67 | 205063.50 | |
| STAKE ANGLE FITS 1391 | UA1390 | 35.25 x 35.25 | Miscellaneous | 1.296 | 228.00 | 33708.58 | 55162.02 | 888706.00 | |
| DIN RAIL | UA2906 | 35.50 x 13.00 | Miscellaneous | 0.352 | 141.00 | 2448.12 | 18881.91 | 213300.30 | |
| FLASHING | UA2086 | 37.36 x 40.04 | Miscellaneous | 0.224 | 141.00 | 20303.94 | 1884.03 | 221879.70 | |
| 35MM TICKET HOLDER | UA2482 | 38.20 x 4.70 | Miscellaneous | 0.153 | 97.00 | 75.07 | 9172.83 | 92479.00 | |
| CAPPING | UA3219 | 39.00 x 47.30 | Miscellaneous | 0.762 | 285.00 | 63707.83 | 76739.34 | 1404471.70 | |
| BLIND ROLLER | UA3267 | 40.70 x 40.35 | Miscellaneous | 0.564 | 155.00 | 38837.72 | 37882.12 | 767198.40 | |
| DROP SIDE HINGE | UA7237 | 47.50 x 12.00 | Miscellaneous | 0.507 | 127.00 | 1888.90 | 23652.88 | 255417.80 | |
| 50MM TICKET HOLDER | UA2462 | 48.00 x 52.00 | Miscellaneous | 0.762 | 265.00 | 14062.09 | 107145.64 | 1212077.30 | |

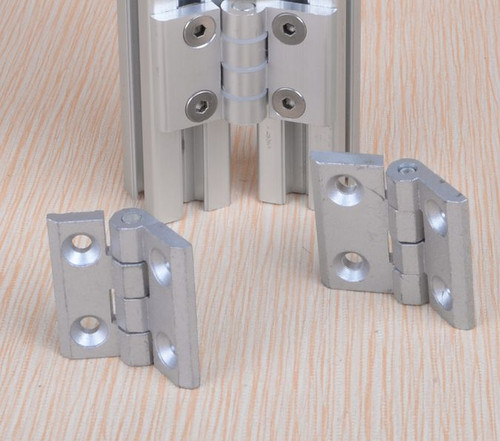

| HINGE | UA1369 | 49.25 x 14.50 | Miscellaneous | 0.588 | 114.00 | 2064.19 | 45221.04 | 472852.30 | |
| HINGE | UA1370 | 49.25 x 14.50 | Miscellaneous | 0.607 | 118.00 | 2603.47 | 46531.80 | 491352.70 | |
| 6MM SHELF BRACKET | UA1679 | 50.00 x 35.00 | Miscellaneous | 0.505 | 196.00 | 7110.23 | 46566.62 | 536768.50 | |
| WORKSPACE POST | UA2163 | 51.00 x 45.00 | Miscellaneous | 2.309 | 462.00 | 158267.18 | 196807.70 | 3550748.80 | |
| 51MM FLUTED COLUMN | UA2251 | 51.00 x 51.00 | Miscellaneous | 0.622 | 158.00 | 60327.65 | 60327.65 | 1206553.00 | |
| 3MM SPLIT TEE | UA1342 | 57.00 x 32.00 | Miscellaneous | 1.035 | 226.00 | 37142.34 | 46424.08 | 835664.20 | |
| 4MM SPLIT TEE | UA3016 | 57.00 x 32.00 | Miscellaneous | 1.035 | 226.00 | 37142.34 | 47065.46 | 842078.00 | |
| 57 X 50 X 3 CHANNEL | UA7774 | 57.00 x 50.00 | Miscellaneous | 1.206 | 304.00 | 112253.20 | 247325.75 | 3595789.50 | |
| BULB TEE | UA7071 | 60.00 x 35.00 | Miscellaneous | 1.086 | 185.00 | 17779.97 | 161765.83 | 1795458.00 | |
| 16MM SHELF BRACKET | UA1678 | 60.00 x 50.00 | Miscellaneous | 0.859 | 250.00 | 61483.61 | 45640.35 | 1071239.60 | |
| 17MM SHELF BRACKET MELTECA | UA2589 | 61.00 x 50.00 | Miscellaneous | 0.861 | 252.00 | 61027.67 | 48140.78 | 1091684.50 | |
| SCALLOP MOULD | UA1492 | 63.50 x 6.35 | Miscellaneous | 0.727 | 130.00 | 615.11 | 67776.33 | 683914.40 | |
| LT7 DOOR CAP | UA1340 | 65.50 x 43.00 | Miscellaneous | 0.508 | 253.00 | 28997.31 | 99853.90 | 1288512.10 | |
| BULB TEE | UA7070 | 70.00 x 40.00 | Miscellaneous | 1.447 | 214.00 | 31734.98 | 286758.96 | 3184939.40 | |
| CONCRETE SCREED | UA4382 | 70.00 x 50.00 | Miscellaneous | 1.234 | 235.00 | 189327.10 | 319026.90 | 5083540.00 | |
| P - SECTION | UA4980 | 76.00 x 38.00 | Miscellaneous | 0.793 | 227.00 | 52801.49 | 143053.76 | 1958552.50 | |
| 80 X 40 X 2.5 RHS WITH SCREW FLUTES | UA7788 | 80.00 x 40.00 | Miscellaneous | 2.134 | 239.00 | 176977.26 | 649554.22 | 8265314.80 | |
| DROP SIDE HINGE | UA5402 | 90.00 x 28.00 | Miscellaneous | 1.828 | 221.00 | 29001.68 | 477316.90 | 5063185.80 | |
| OFFSET TEE | UA6341 | 100.00 x 56.00 | Miscellaneous | 2.429 | 310.00 | 188885.25 | 612351.35 | 8012366.00 | |
| PLANK - DECK EXTENSION | UA2899 | 123.20 x 50.00 | Miscellaneous | 2.032 | 418.00 | 260569.05 | 1218732.32 | 14793013.70 | |
| TOE BOARD | UA3465 | 150.00 x 13.00 | Miscellaneous | 1.823 | 350.00 | 10804.24 | 1325454.18 | 13362584.20 | |
| 200 X 50 X 2.5 RHS WITH SCREW FLUTES | UA7773 | 200.00 x 50.00 | Miscellaneous | 3.612 | 498.00 | 647349.72 | 6063908.67 | 67112583.90 | |
| FISH BOARD | UA4050 | 203.20 x 22.30 | Miscellaneous | 2.688 | 599.00 | 55845.93 | 4322679.90 | 43785258.30 | |
| PLANK | UA4592 | 228.00 x 50.00 | Miscellaneous | 3.447 | 657.00 | 493421.57 | 6814914.49 | 73083360.60 | |
| BENCH SEAT TOP | UA4473 | 254.00 x 54.98 | Miscellaneous | 2.787 | 870.00 | 394193.40 | 8214824.05 | 86090174.50 |
Diagrams actual size unless otherwise indicated. Diagrams are schematic only and are not intended as specification drawings.
OAD = Overall dimensions (mm)
P = External periphery (mm)
R = Radiused corner (mm)
W = Weight (kg/m)
Polar MI units mm4
Ix & Iy units mm4
